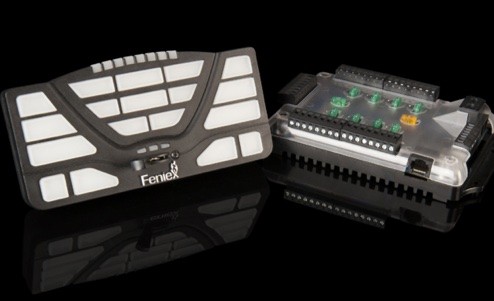

Feniex 4200

5 year warranty
All in one controller
Input Voltage: 11-16 VDC

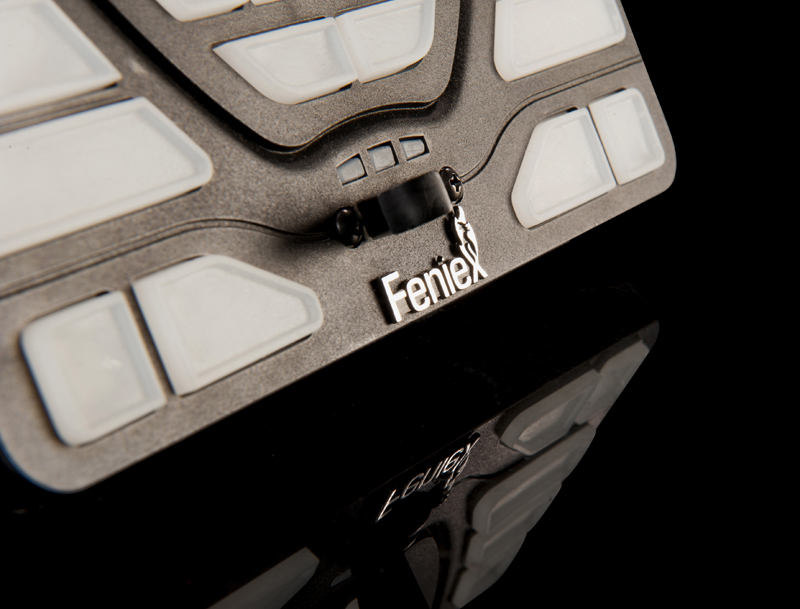

18, back-lit, push-feel buttons
4 position programmable slide switch
Includes U-shaped aluminum bracket
Bluetooth App pairing password: 1111
Integrated traffic advisor with 8 outputs
Implements rugged, solid state relays
8 positive (+) or ground (-) activated inputs
17 programmable outputs: 10 Amps (+)
1 programmable outputs: 3 Amps (-)
2 programmable, 4 output groups: 20 Amps
1 programmable 4 output continuous current: 30 Amps
Integrated 2 channel Wigwag/LED flasher rated at 3 Amps
Includes wire connectors for easy installation

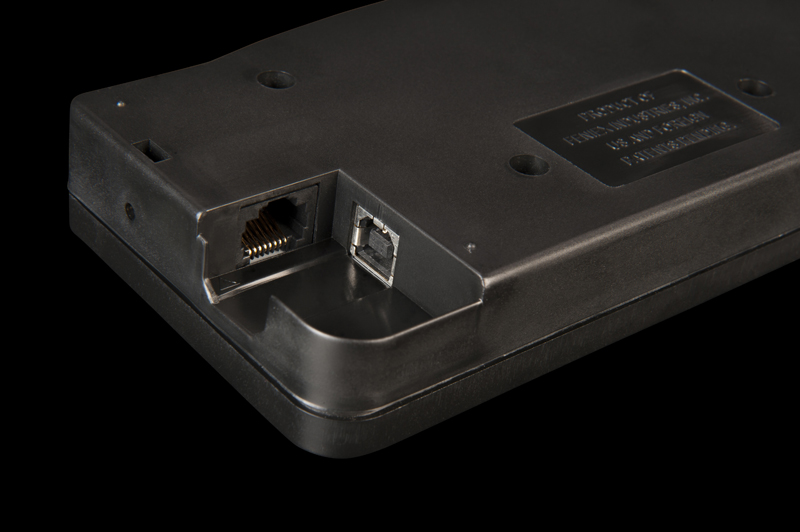

USB port provides easy access for programming

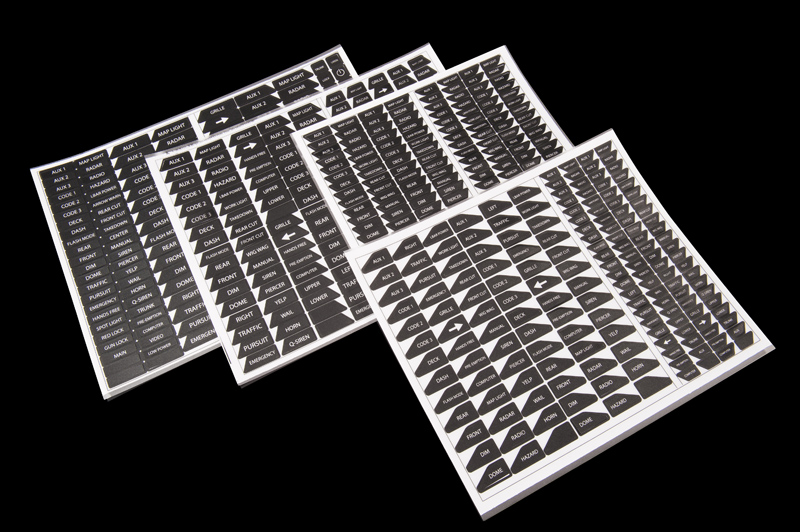

Includes 50 standard function labels per button

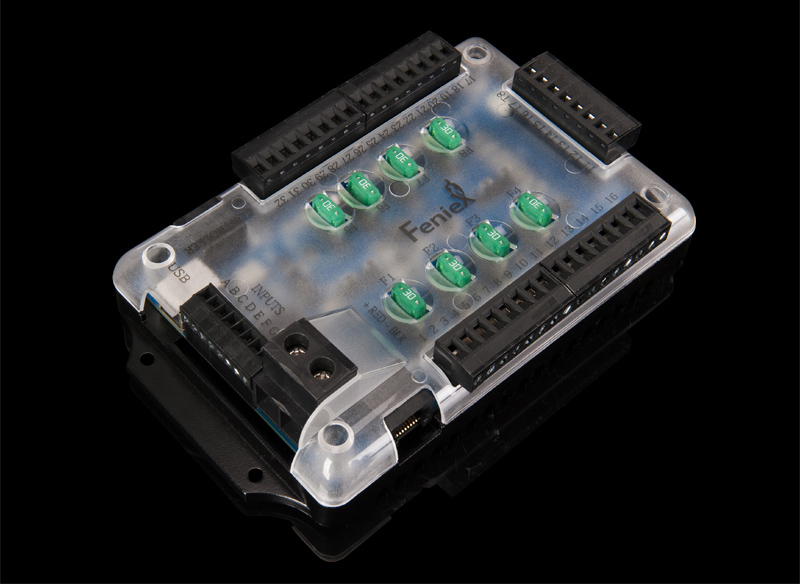

Dimensions of power supply: 6″ L x 4″ W x 1.5″ H

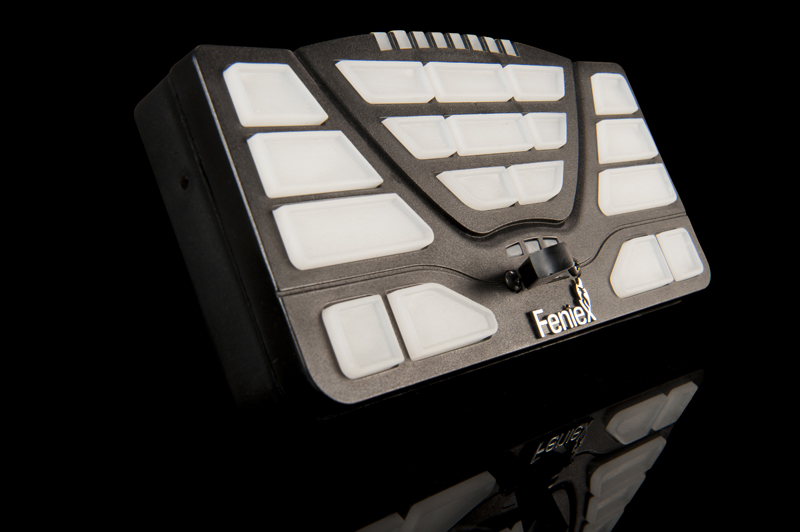

Dimensions of controller: 6.8″ L x 3.5″ W x 1.3″ H
Back-lit LEDs can be adjusted for day or night time use
Compatible with all other lighting and vehicle equipment

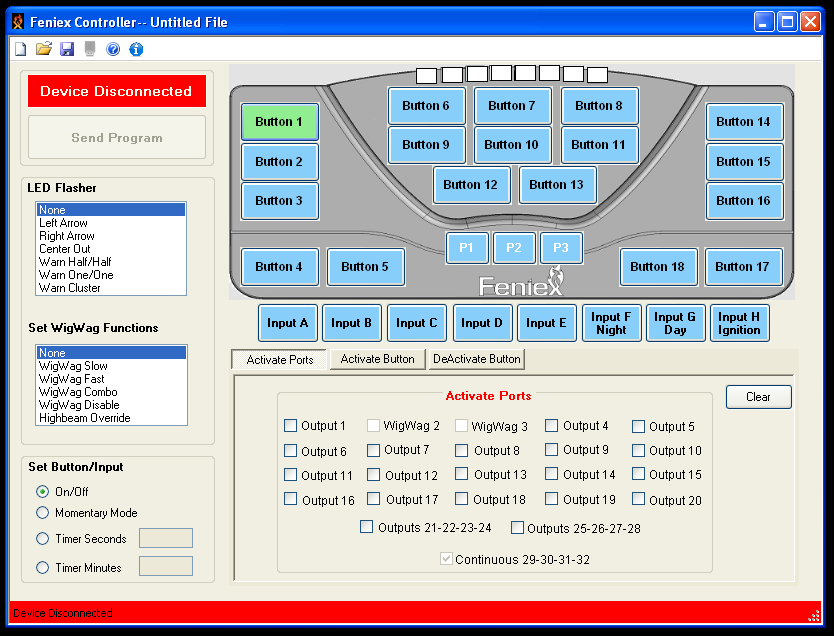

Programmed using our Feniex designed Windows application
Ability to program buttons as: On/Off, Momentary, Timer

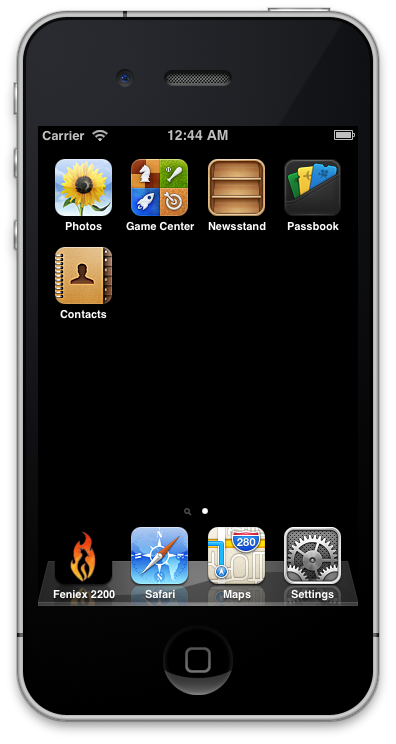

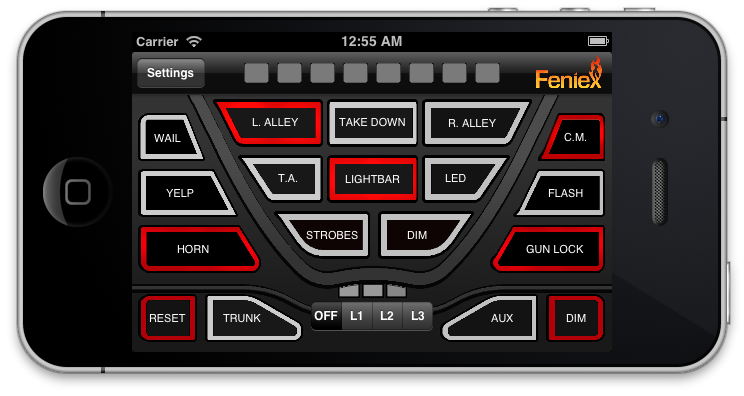

Bluetooth add on allows for phone or tablet wireless control
Color coded back lit LEDs (Red indicator for on/Green for off)

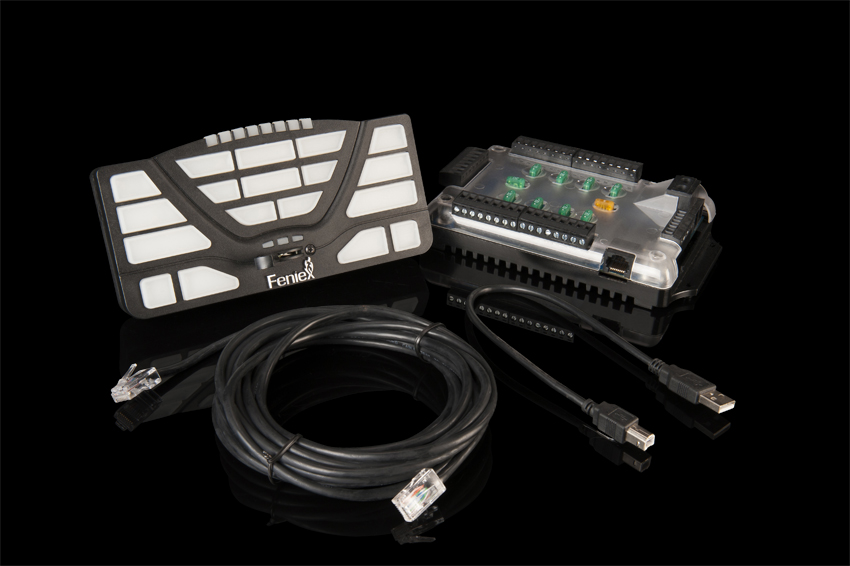

Includes 15 ft of RJ-45 cable to link controller to power supply
